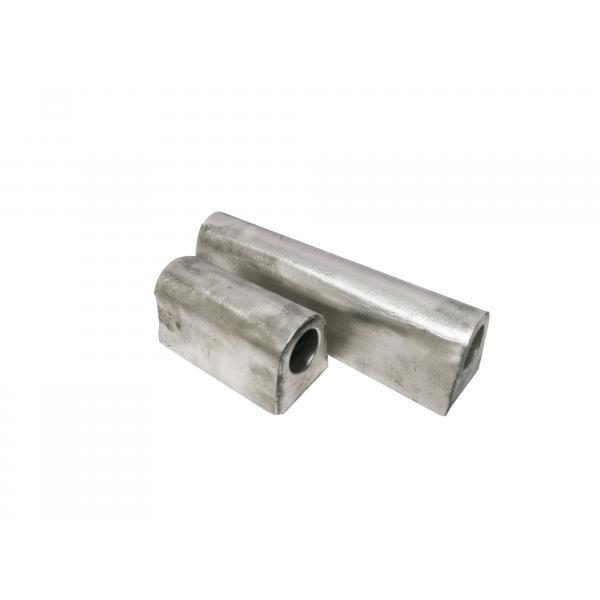

AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms

    Buy cheap AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms from wholesalers

    Buy cheap AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms from wholesalers
    • Buy cheap AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms from wholesalers
    • Buy cheap AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms from wholesalers

    AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms

    Ask Lasest Price
    Brand Name : HNHB
    Model Number : Prepack anodes 1.5v
    Certification : REACH
    Price : discussed
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 300mt/month
    Delivery Time : 1FCL: 14 days
    • Product Details
    • Company Profile

    AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms

    AZ63 1.5v Casting Anode 17D3 7.7 Kgs Sacrificial Magnesium Anode For Onshore Platforms And Underground Tank Anti Foul


    We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.



    Chemical compositions of cast magnesium anodes (%)
    ElementHigh potentialAZ63BAZ63CAZ63D
    Al<0.015.30-6.705.30-6.705.0-7.0
    Zn---2.50-3.502.50-3.502.0-4.0
    Mn0.5-1.300.15-0.700.15-0.070.15-0.70
    Si (max)0.050.100.300.30
    Cu (max)0.020.020.050.10
    Ni (max)0.0010.0020.0030.003
    Fe (max)0.030.0050.0050.005
    Others each0.05--------
    Others total0.300.300.300.30
    MgBalanceBalanceBalanceBalance

    Electrochemical Properties of cast magnesium anodes
    ItemOpen-circuit VoltageClose-circuit VoltageActual capacitanceCurrent efficiency
    (-V)(-V)(A.h/g)(%)
    High Potential1.70-1.751.57-1.62≥ 1.100≥ 50

    Low Potential

    (AZ63)

    		1.50-1.551.45-1.50≥ 1.105≥ 50
    Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)


    Vivian Jiang

    -----------------------------------------------

    China Hunan High Broad New Material Co.Ltd.

    70 Chezhan North Road,Changsha, China 410100

    Tel:+86-731-85717705 Fax:+86-731-85716569

    Mobile/Whatsapp: +86-139-7488-3816

    Email: vivian@hbnewmaterial.com

    Skype: vivian.jjy


    Quick Details
    Place of Origin:
    Hunan, China
    Brand Name:
    HNHB
    Model Number:
    AZ63-17D3
    Application:
    cathodic protection
    Shape:
    D type
    Material:
    Magnesium anode and backfill
    Chemical Composition:
    Mg,Mn,Al,Zn,Cu
    Product name:
    Prepackaged D type magnesium sacrificial anode for cathodic protection
    Color:
    Silver
    Usage:
    cathodic protection
    Certificate:
    ISO certificate /MSDS
    Standard:
    ASTM
    Appearance:
    Smooth
    Technology:
    Cast
    Other Sizes:
    9LBS/32LBS/4LBS/17LBS
    Free sample:
    Free sample available
    Type:
    D type/ S type


    Product Tags:

    1.5v Casting Sacrificial Magnesium Anode



    Sacrificial Magnesium Anode 17D3


    Quality AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms for sale

    AZ63 1.5v Casting Sacrificial Magnesium Anode 17D3 7.7Kgs For Onshore Platforms
